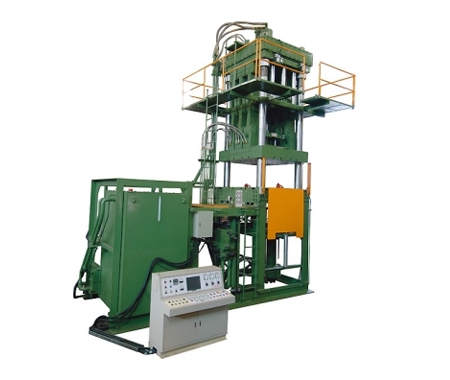

Product No : CT-1000
Description
  • Die Locking Force: 1000 Ton
  • Die Thickness: 450~1300 mm
  • Tie Bar Spacing: 1040 x 1040 m
  • Max of Casting Material: 16.0 kgs
  • Suitable Materials for Metal: Aluminum
Inquiry
Specification
DescriptionMain ItemUnitCT-1000
Die Locking Force Ton 1000
Die Platen Dimension mm 1520 x 1520
Tie Bar Spacing mm 1040 x 1040
Tie Bar Dimension mm ∮180 x 4900L
Die Thickness mm 450~1300
Die Stroke mm 800
Shot Force:
Injection / Squeeze		 mm ∮250 /∮400
Cylinder:
Injection / Squeeze		 Ton 69 / 176
Plunger Stroke mm 420
Motor HP 75
Plunger Diameter mm 140
Max of Casting Material kg 16
Automatic system Automatic Extractor
Gripping Diameter		 mm Option
∮90~∮140
Automatic Extractor
Gripping Diameter		 -
kg		 Option
12-18 kg
Automatic Sprayer - Option
Machine relation Machine Dimension
(L x W x H)		 mm 6000 x2000x7800
Machine Weight Ton 56 Ton
